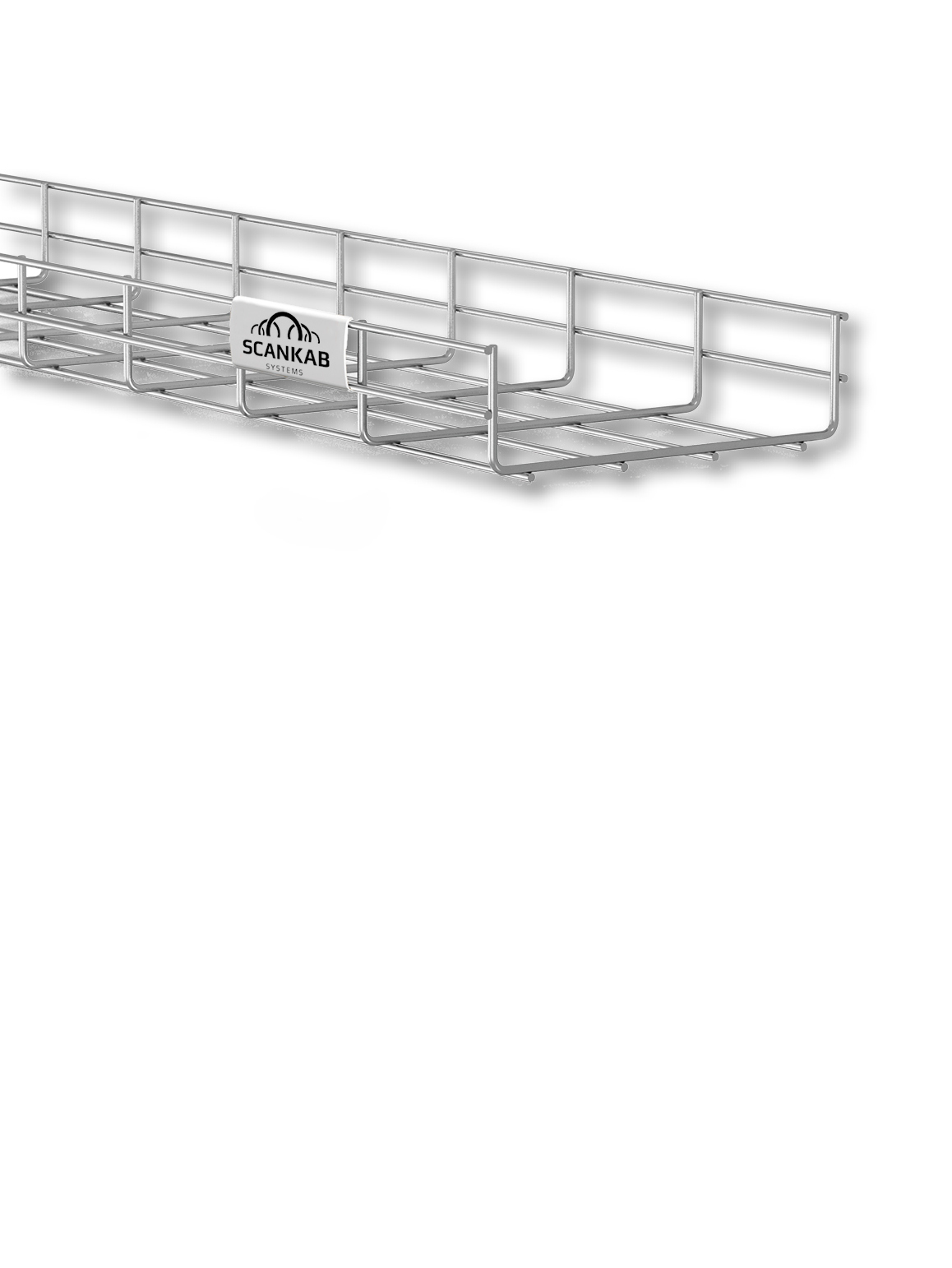

Wire mesh trays - SS304
Application
Welded rod metal tray, with safety edge, for the carrying of electrical and telecommunications wiring.
Patented safety edge. Avoids damage to cables and injury to the installer. It is lightweight providing maximum ventilation and cleanliness for the cables. Provides high strength and flexibility.
Construction
SS304 = Stainless
Technical data
Sold in lengths of 3 meters
Approvals
AENOR, UL classified, E90, IEC 61537, Nema VE-1 Standard
Buldings
Chemical / Pharma
Data centers
Energy
Food
Petro
Solar cells
Tunnel / Railways
| SKU | EAN | Material | Dimension (mm) | Diameter (mm)* | Packaging | |
|---|---|---|---|---|---|---|
| 60251060 | 8431927046529 | 304 | 35x60 | 4,0 | 3 m | |
| 60251100 | 8431927006837 | 304 | 35x100 | 4,0 | 3 m | |
| 60251150 | 8431927092335 | 304 | 35x150 | 4,0 | 3 m | |
| 60251200 | 8431927006844 | 304 | 35x200 | 4,0 | 3 m | |
| 60251300 | 8431927006851 | 304 | 35x300 | 4,0 | 3 m | |
| 60251400 | 8431927015938 | 304 | 35x400 | 4,0 | 3 m | |
| 60252060 | 8431927006868 | 304 | 60x60 | 4,0 | 3 m | |
| 60252065 | 8431927096876 | 304 | 60x60-2 | 4,0 | 3 m | |
| 60252100 | 8431927006875 | 304 | 60x100 | 4,0 | 3 m | |
| 60252150 | 8431927006882 | 304 | 60x150 | 4,5 | 3 m | |
| 60252200 | 8431927006899 | 304 | 60x200 | 4,5 | 3 m | |
| 60252300 | 8431927006905 | 304 | 60x300 | 4,5 | 3 m | |
| 60252400 | 8431927006912 | 304 | 60x400 | 4,5 | 3 m | |
| 60252500 | 8431927006929 | 304 | 60x500 | 4,5 | 3 m | |
| 60252600 | 8431927006936 | 304 | 60x600 | 4,5 | 3 m | |
| 60253100 | 8431927036810 | 304 | 100x100 | 4,5 | 3 m | |
| 60253150 | 8431927085283 | 304 | 100x150 | 4,5 | 3 m | |
| 60253200 | 8431927006943 | 304 | 100x200 | 4,5 | 3 m | |
| 60253300 | 8431927006950 | 304 | 100x300 | 4,5 | 3 m | |
| 60253400 | 8431927006967 | 304 | 100x400 | 4,5 | 3 m | |
| 60253500 | 8431927006974 | 304 | 100x500 | 4,5 | 3 m | |
| 60253600 | 8431927006981 | 304 | 100x600 | 4,5 | 3 m | |
| * The values can have small deviations | ||||||
